Overview

This tutorial demonstrates how to build a quality assurance system for customer support responses using three specific Latitude evaluation types:
  • LLM-as-Judge: Rating evaluation for helpfulness assessment
  • Programmatic Rules with Exact Match for required information validation
  • Human-in-the-Loop manual evaluation for customer satisfaction scoring

​
The Prompt

This is the prompt that will be used to generate customer support responses. It is a simple prompt that takes a customer query and generates a response. It doesn’t use a knowledge base or any additional information.
---
provider: OpenAI
model: gpt-4.1
---

You are a helpful customer support agent. Respond to the customer inquiry below with empathy and provide a clear solution.

Customer inquiry: {{customer_message}}
Customer tier: {{tier}}
Product: {{product_name}}

Requirements:
- Always include the ticket number: {{ticket_number}}
- Address the customer by name if provided
- Provide specific next steps
- End with "Is there anything else I can help you with today?"
In this example, the prompt is very simple, but you could also upload documents to OpenAI and use their new Responses API file search. This implements a knowledge base search that can be used to find relevant information in the documents, so your responses to customer support queries can be based on actual documentation. However, this is out of the scope of this tutorial.

​
The Evaluations

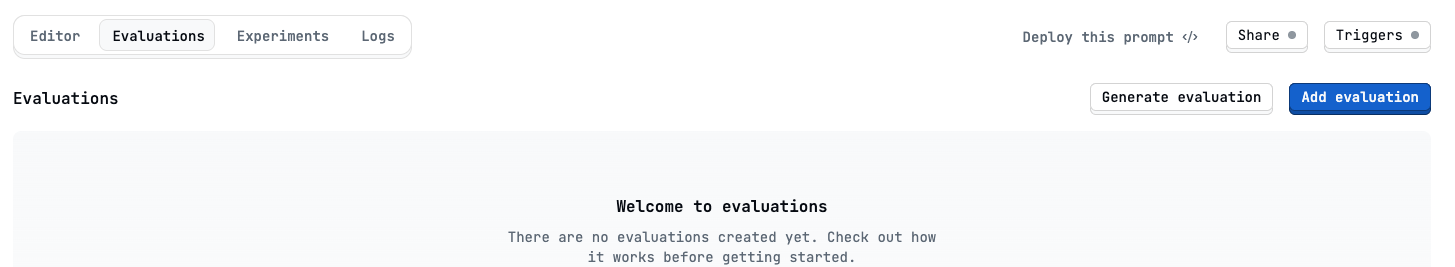

To create new evaluations, go to the evaluations tab in the Latitude Playground and click on “Add Evaluation”. Evaluations
This is how we configure an LLM-as-Judge evaluation to assess the helpfulness of customer support responses.
1

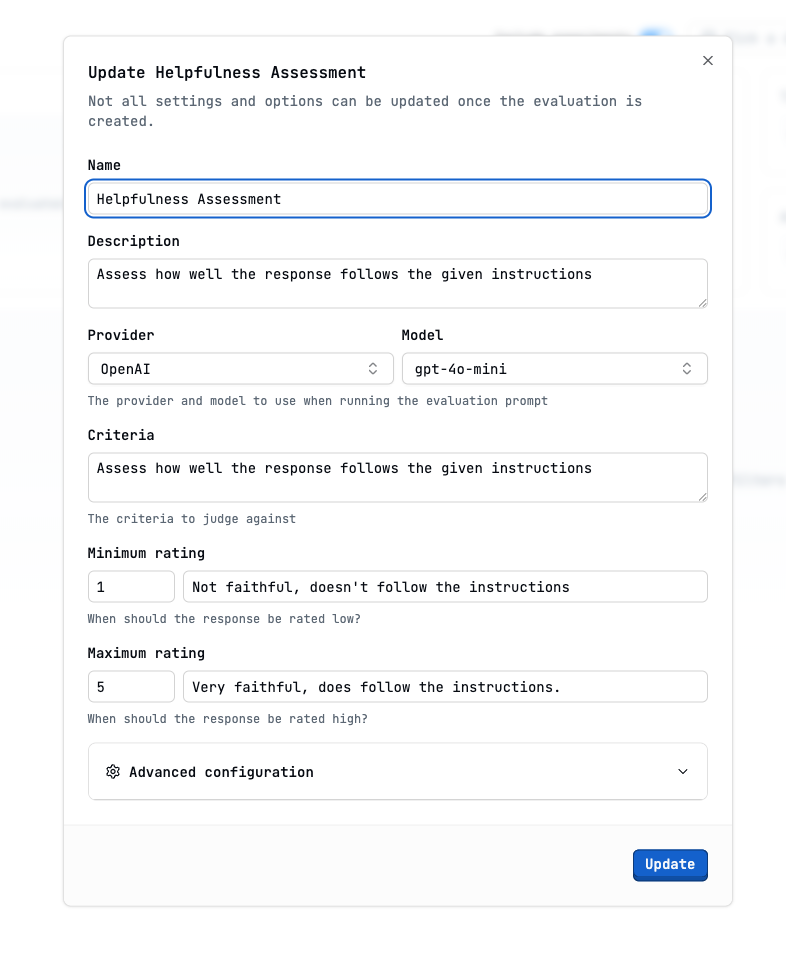

Configure the evaluation

This evaluation uses the Rating metric from the AI to assess response quality, with criteria such as Assess how well the response follows the given instructions and a 1-5 rating scale where 1 means Not faithful, doesn’t follow the instructions and 5 means Very faithful, follows the instructions.
2

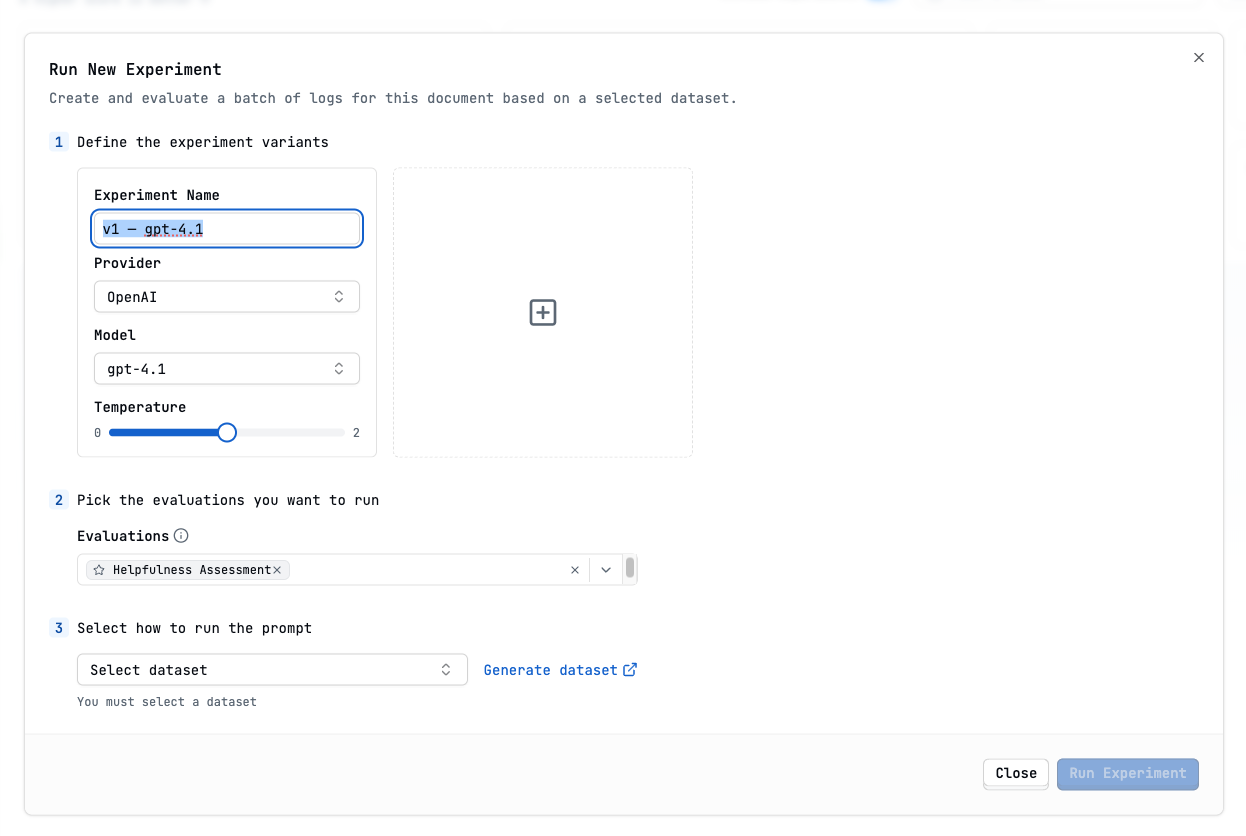

Create an experiment from the evaluation

An Experiment is a way of running the prompt many times and validating, with this evaluation, if it passes the criteria. Before creating the experiment, we need to create a dataset. Click on “Generate dataset”.
3

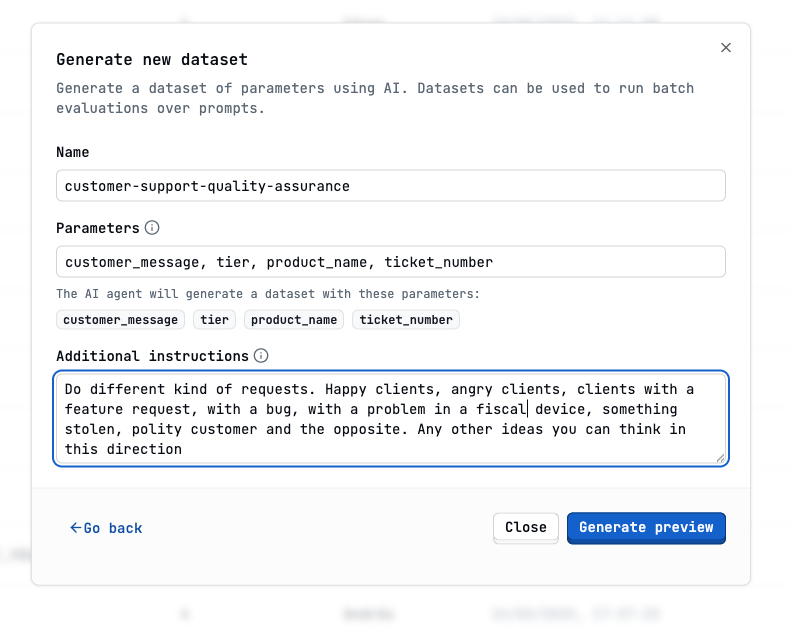

Create the synthetic dataset

A synthetic dataset is generated by the system to test the evaluation. It allows us to test the evaluation without having to create a real dataset. It sets columns for each parameter in our prompt.
4

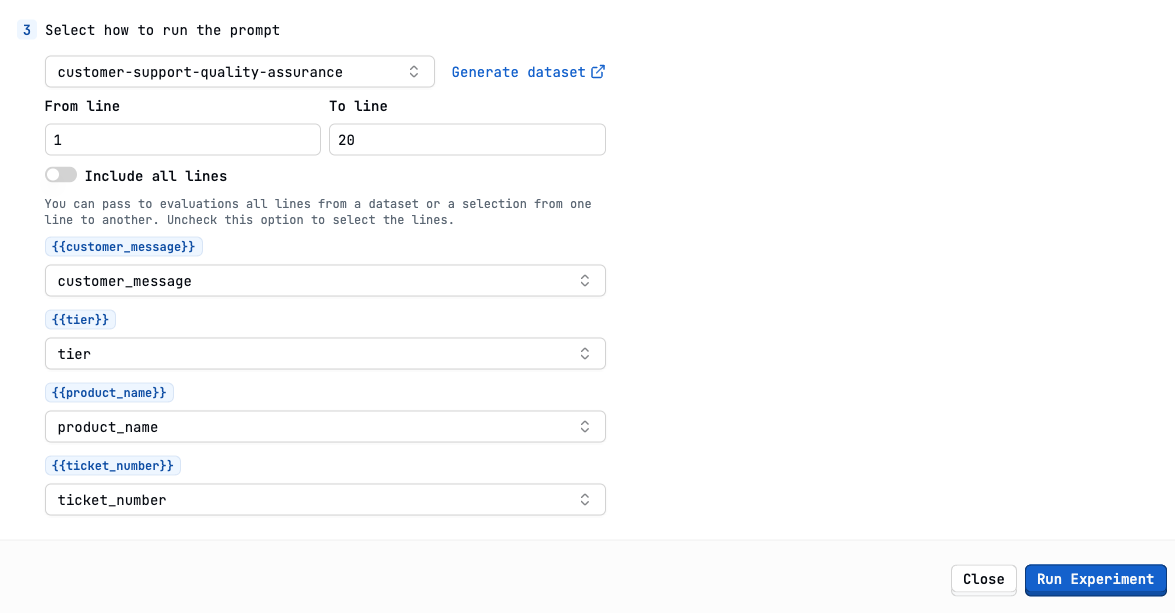

Run the experiment

Once we have the dataset, select it in the dataset selector and click “Run experiment”.
You can see how the columns in this dataset have to match the parameters in our prompt.
5

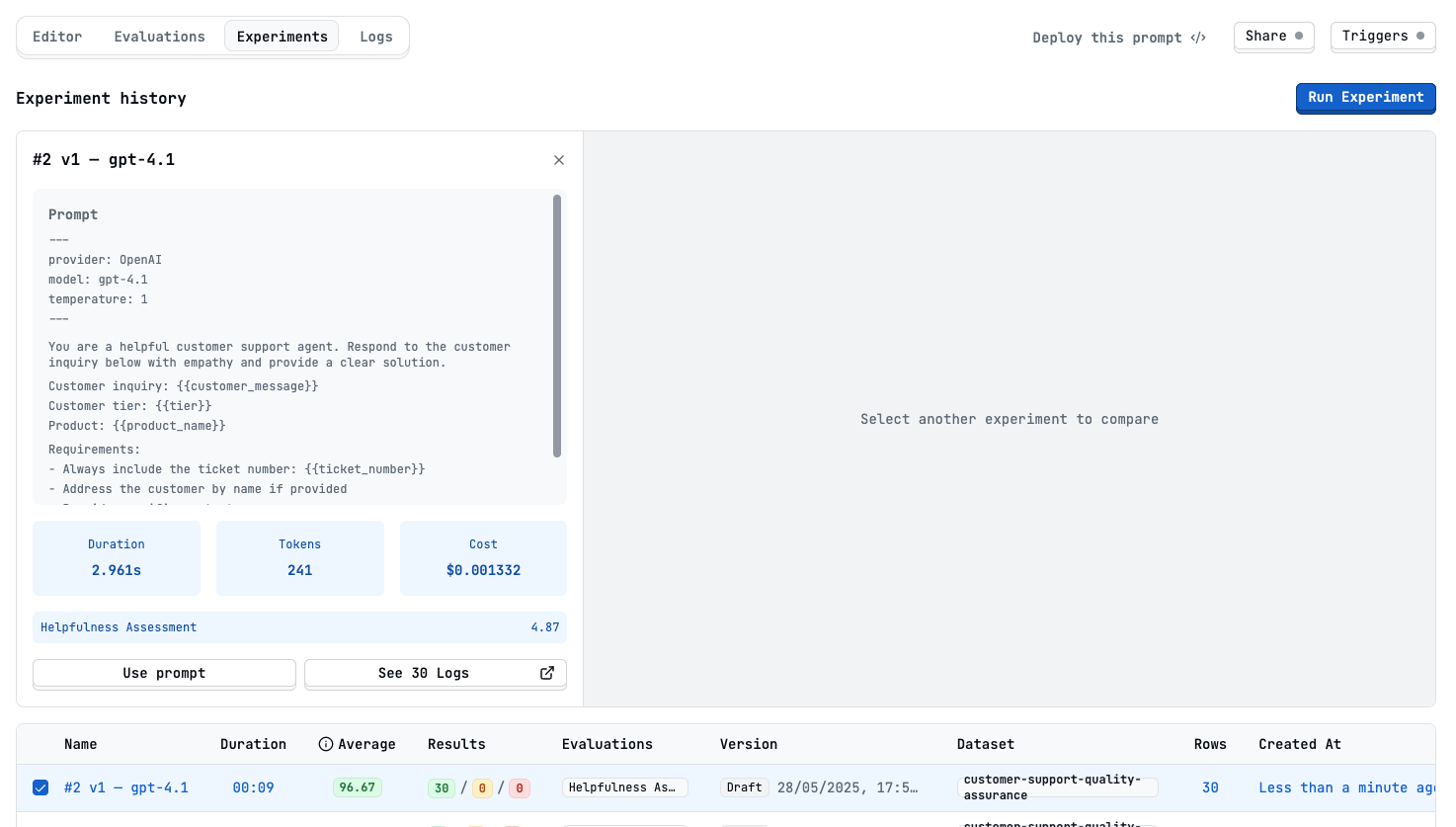

View experiment results

After running the experiment with 30 rows of the synthetic dataset you just created, you can see the results! The green counter shows the successful cases. Yellow represents results that failed the evaluation, and red means errors occurred during the experiment run.
The goal of this evaluation is to ensure every response contains mandatory elements like ticket numbers and proper closing statements. Let’s set it up.
1

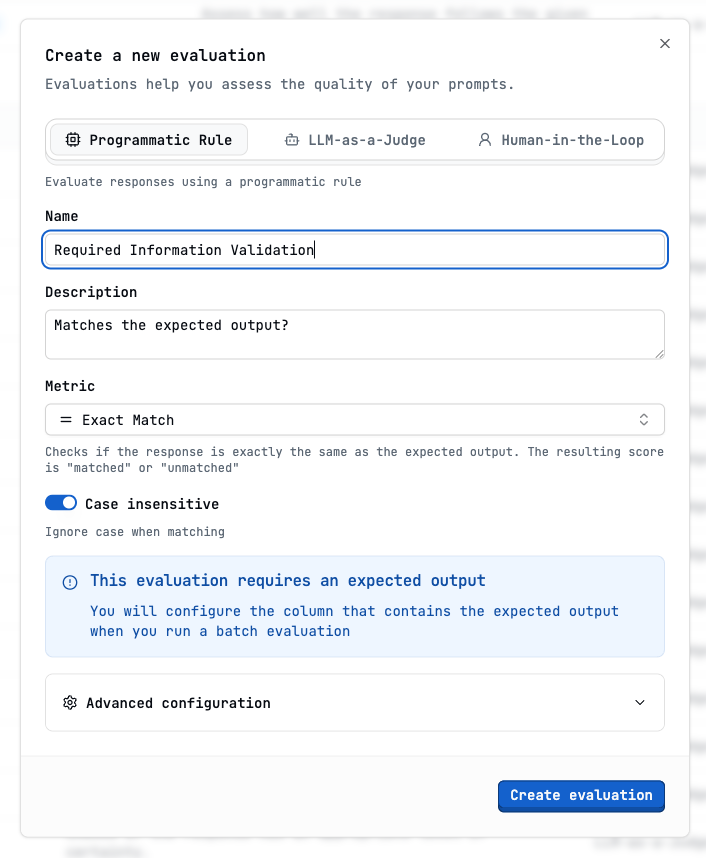

Configure the evaluation

This rule cannot be used with your real logs. It needs an expected output to match.
2

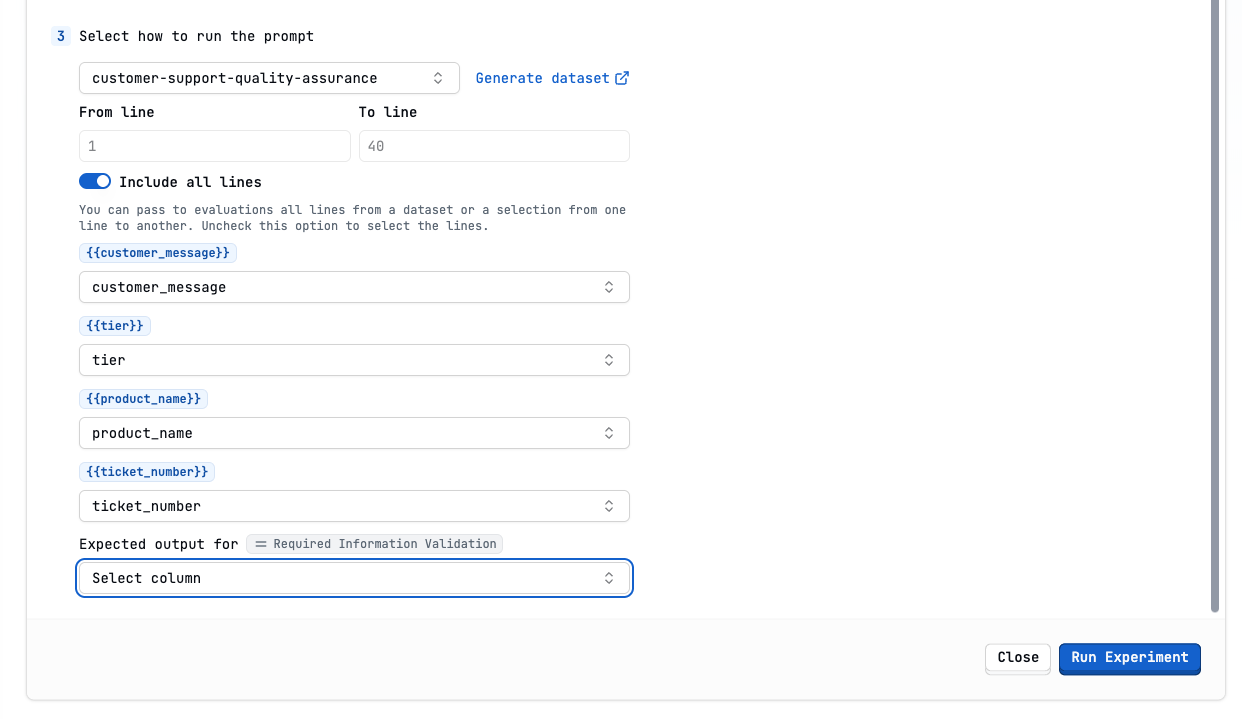

Create dataset with expected output

We need to create another dataset, but this time it must have an expected output column. You can use the same dataset but add a new column with the expected output. In this case, we want to ensure our prompt always responds with the sentence Is there anything else I can help you with today?
1

Configure the evaluation

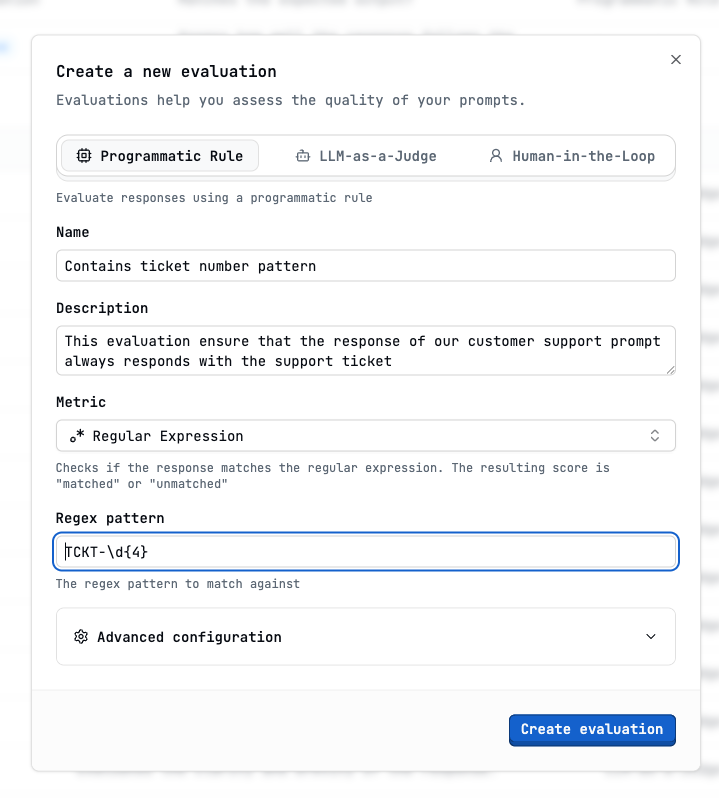

To configure this evaluation, we use a regular expression to ensure the customer support response contains a ticket number. So in this case, we require:
  1. The ticket number starts with TCKT-
  2. Followed by 4 digits (-\d{4})

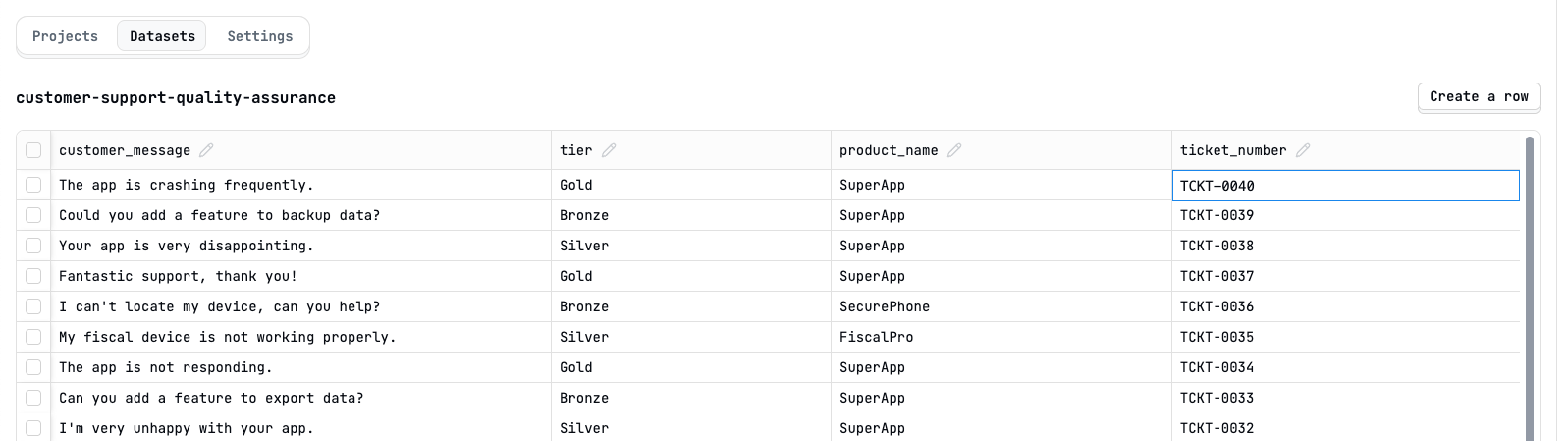

This is the shape of our ticket column in the dataset.Now we’re ready to create this new evaluation.
2

Run the experiment

This step is the same as for the first evaluation. We create an experiment and see the results. In this case, we should see that the AI responded with the ticket number because it’s part of our prompt. This is a basic check, but ensures future modifications to the prompt keep the ticket number.
1

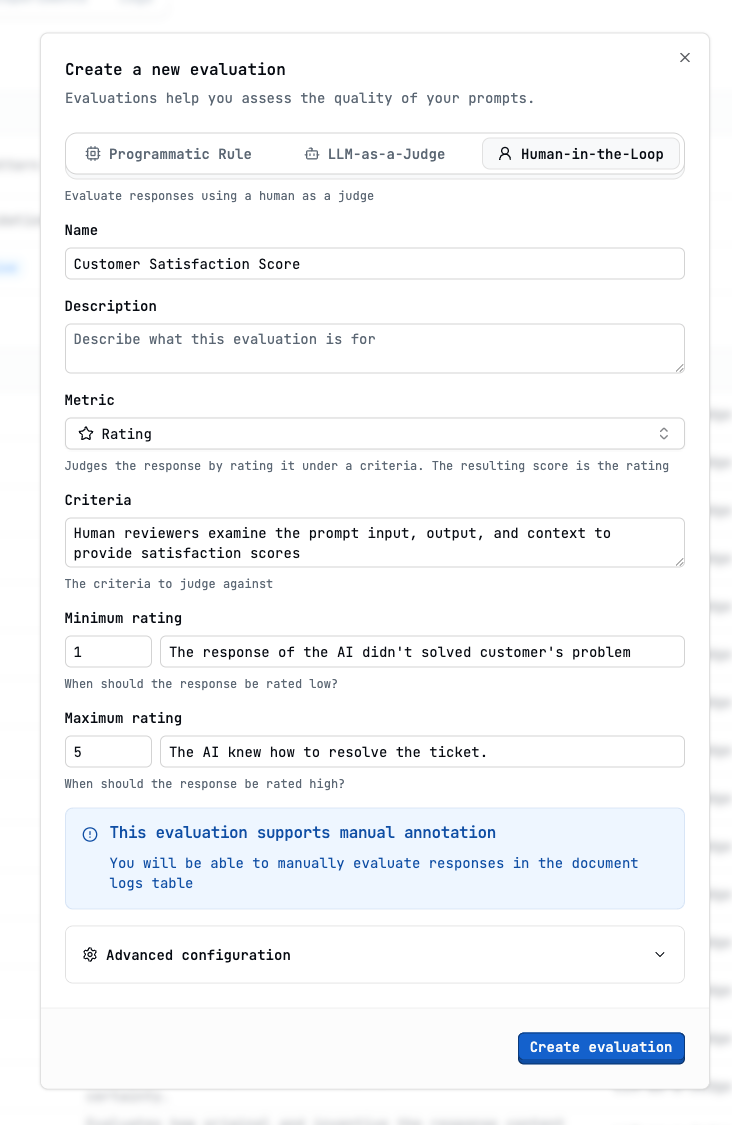

Configure the evaluation

Customer satisfaction involves nuanced judgment about tone, cultural sensitivity, and domain-specific accuracy that automated systems might miss, making it perfect for human evaluation.
2

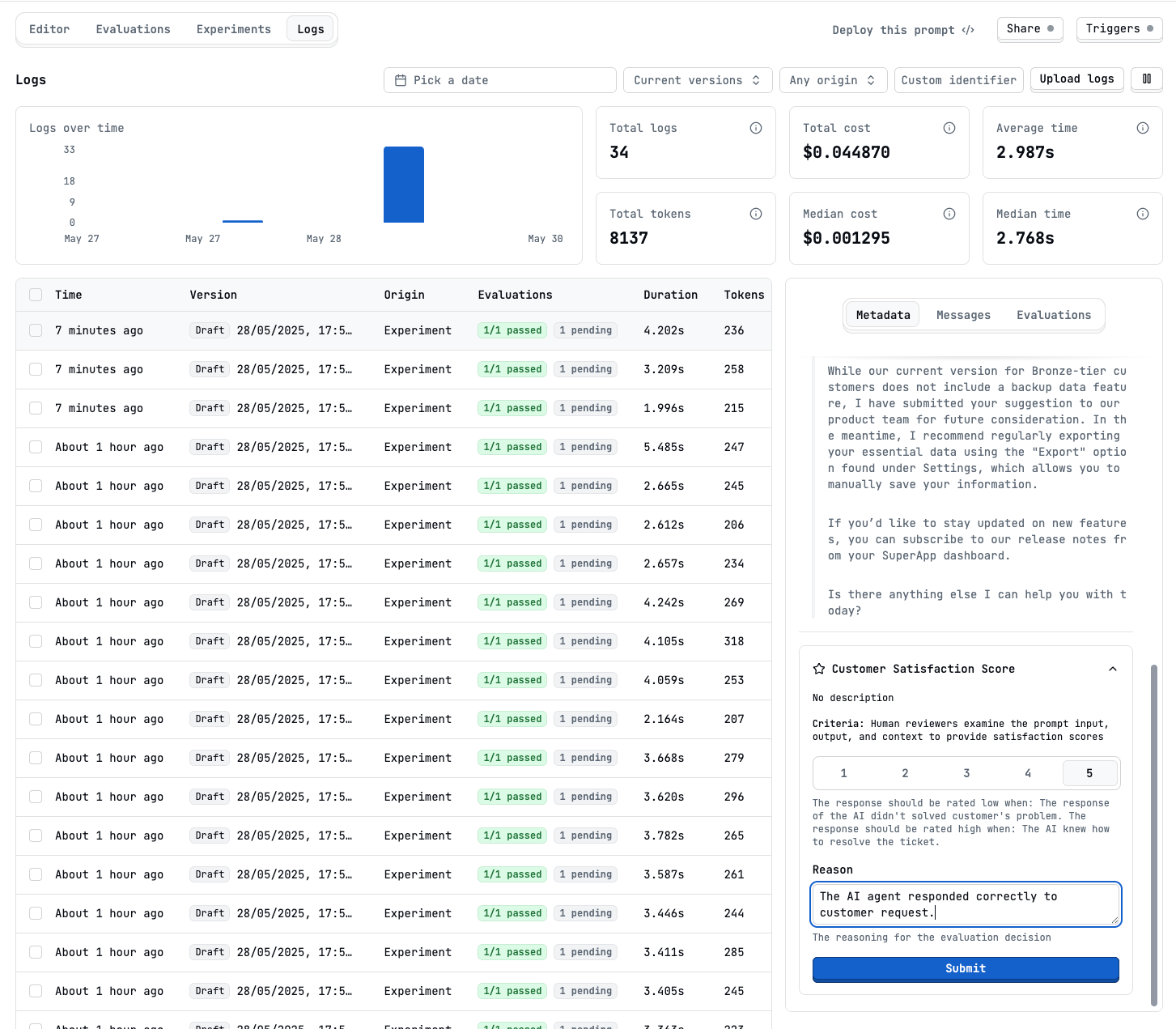

Annotate past conversations (logs)

The first way to enable human evaluators to review responses is to give them access to Latitude’s logs. When they click on the logs in the right panel, now that we’ve configured the HITL evaluation, they will be able to assign a score from 1 to 5 as previously configured.
3

Annotate with the SDK

Another way to add manual evaluations is to use the Latitude SDK. You can see an example of how to do it here.
4

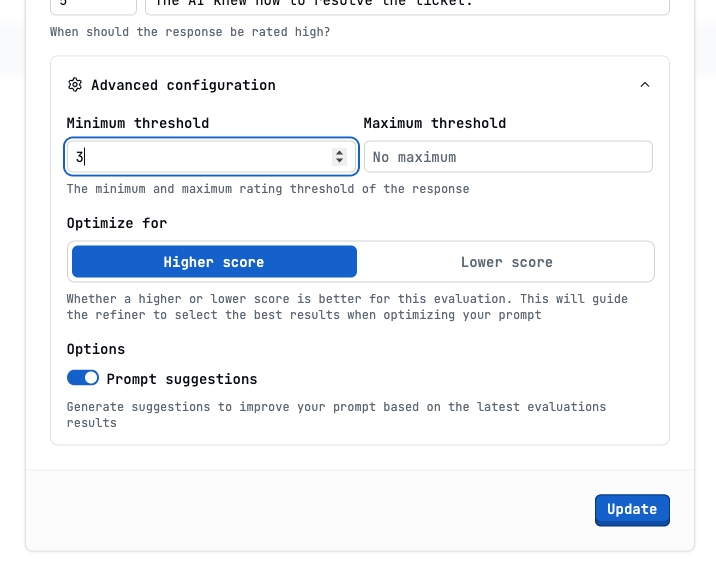

Minimum score

One thing we didn’t do when configuring the evaluation is to set a minimum score required to pass. Let’s do it now: Go to the manual evaluation detail at the top right of the screen and click Settings.
5

Manual evaluation results

Now our human evaluator has scored the responses and we can see the results in the experiment. In the image, we see an evaluation with score 1 but in green. This was before we set the minimum score to 3. The next one didn’t pass and is shown in red.

​
Live Mode

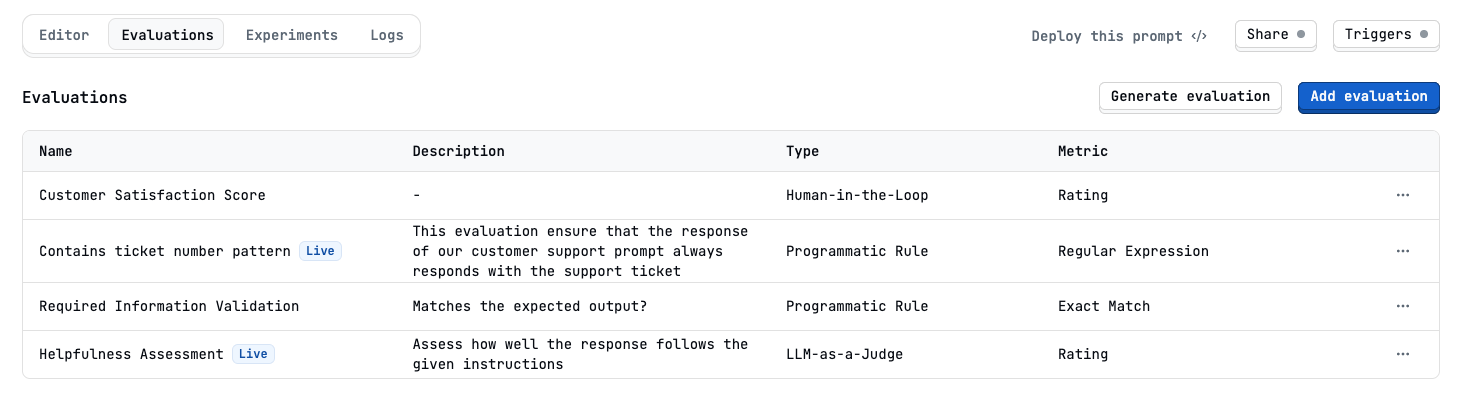

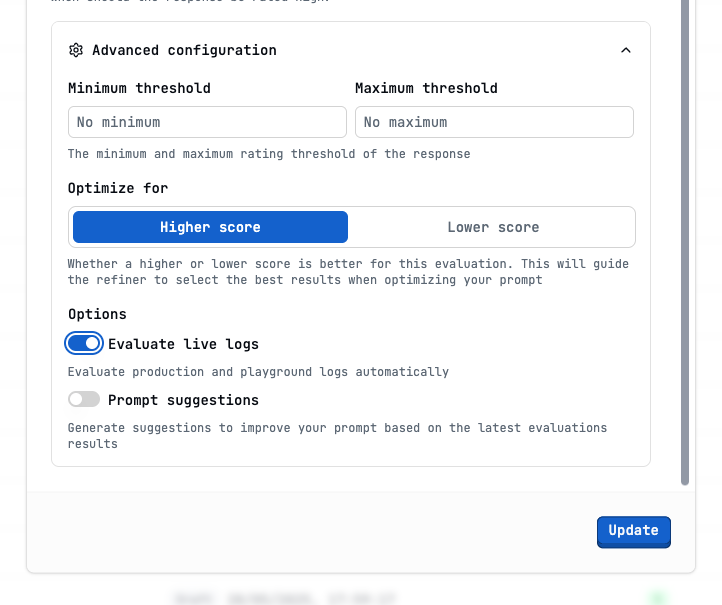

We’ve done a lot of work so far. We set up four types of evaluations but only tested against synthetic data. Now we want to test our evaluations against real customer interactions—this is what we call Live Mode. Let’s set the Helpfulness Assessment evaluation to live mode. Go to the evaluation’s detail, click the top right corner Settings, and at the bottom under Advanced configuration, you can see the Evaluate live logs toggle. Live logs configuration We did the same for the Contains Ticket Number programmatic rule evaluation.
Manual evaluations can’t be set to live mode because human evaluators review the responses manually after the AI responds to the customer. The Required Information Validation evaluation is also not suitable because it requires an expected output to match against the AI response.

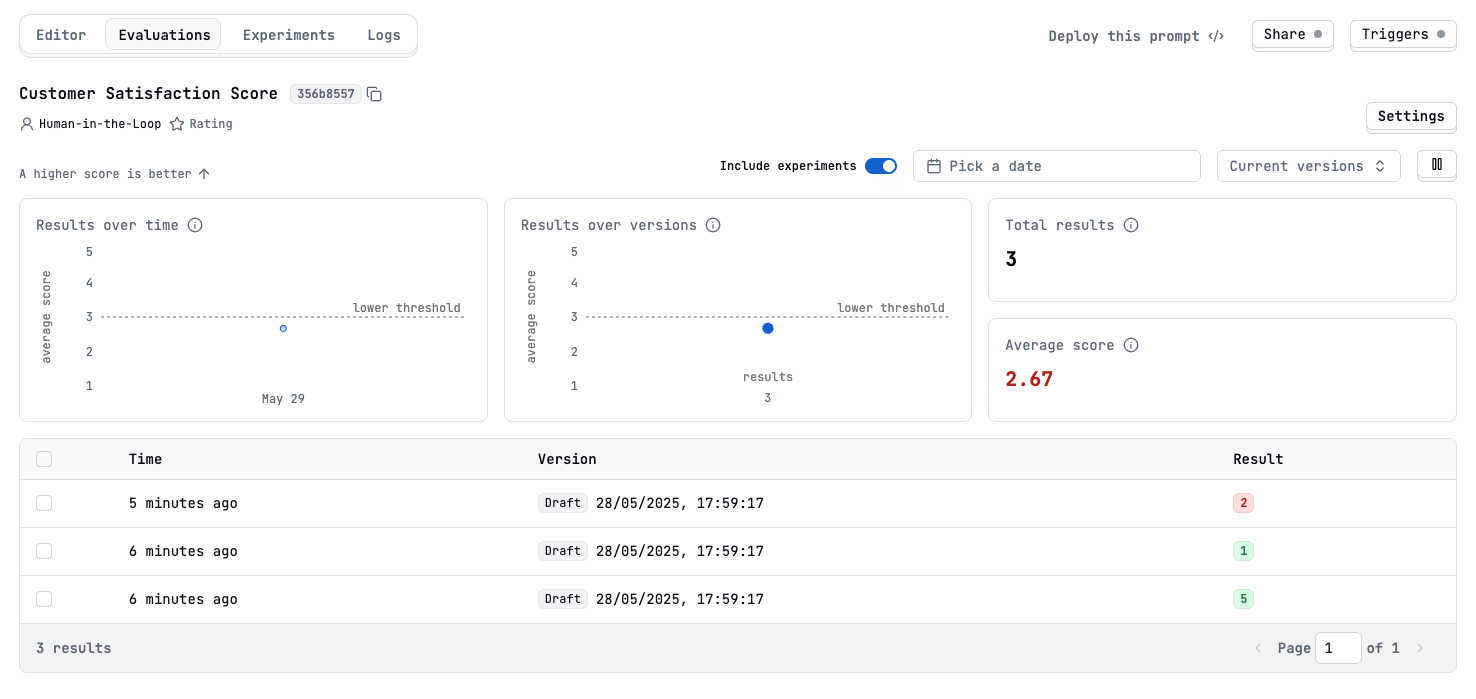

HITL results table

​
Conclusion

By setting up a robust evaluation framework for customer support responses, we’ve learned how different types of automated and manual evaluations work together to ensure high-quality service. Automated LLM-based ratings help us assess response helpfulness at scale, while programmatic rules—like exact match and regular expressions—ensure critical information such as ticket numbers and required statements are always included. Human-in-the-loop (manual) evaluations provide the nuanced judgment that only real people can offer, especially for customer satisfaction and tone. Testing our system with both synthetic and real data (live mode) gives us confidence that our evaluations are both reliable and effective. Ultimately, these evaluations help us catch issues early, improve our AI prompts, and consistently deliver accurate and customer-friendly support—leading to better customer satisfaction and operational excellence.

​
